Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig

Name: Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig
Brand: SANROCK
Price: 1 USD

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig Manufactures

Power : 16.2KW

Application : Geological Exploration

Single package size : 2150×880×1560 mm

Delivery Time : 15-25days

Payment Terms : L/C,D/A,D/P,T/T,Western Union,

Drill rod diameter : 42-60mm

Price : negotiable

Maximum feed pressure of vertical shaft : 15KN

Vertical shaft travel : 450mm

Supply Ability : 5000Set/Sets per Month

Drilling Diameter : 75-325mm

Brand Name : SANROCK

Dimension(l*w*h) : 2700*900*1500mm

Drilling Depth : 200m

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Place of Origin : Zhejiang, China

Vertical shaft speed(4th gear) : 71,142,310,620 r/min

Final hole diameter : 75mm

Name : borehole drilling rig,core drilling rig

Maximum output torque of vertical shaft : 15KN

Hole dip Angle : 90-75°

Feature : High Drilling Efficiency,portable，Light Weight

Maximum lifting weight of vertical shaft : 25KN

MOQ : 1Set/Sets per Month

Rated speed : 2200r/min

After-sales service provided : Online support

Usage : water well.core sample

Type : Core Drilling Rig

Model Number : SRC200

Single gross weight : 760 kg

Certification : CE ISO 9001:2015

Product name : hydraulic core drilling rig

Contact Now

200-Meter Deep Exploration Portable Core Drilling Rig

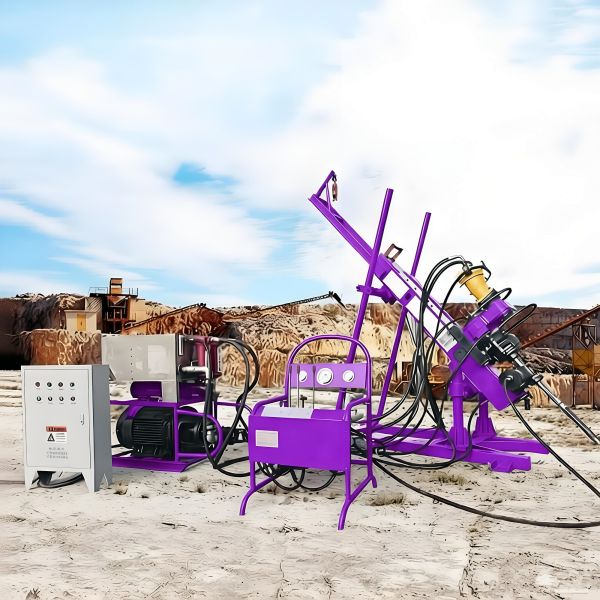

The 200-meter deep exploration portable core drilling rig is a compact and lightweight solution designed for efficient subsurface coring in remote and challenging environments. Despite its small footprint, this rig is capable of reaching depths of up to 200 meters, making it ideal for mineral exploration, geological surveys, geotechnical investigations, and groundwater studies. Its modular design allows for easy disassembly and transportation, enabling rapid deployment in areas with limited access. Equipped with a powerful yet fuel-efficient engine and a hydraulic feed system, the rig delivers precise rotation speed and pressure control for high core recovery rates. Compatible with wireline coring systems and various diamond drill bits, it ensures intact and high-quality core samples with minimal disturbance. The rig also features a user-friendly control panel, built-in safety mechanisms, and low maintenance requirements, making it suitable for both experienced drillers and field technicians. Compact, durable, and highly versatile, this portable core drilling rig is the ideal choice for efficient deep exploration in rugged terrain or confined spaces.

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig

Products Description

Brand Name:SANROCK

Product name :Core Drilling Rig

Name: Core Drilling Machine

Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight

Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Diamond Core Drilling Machine Geotechnical Engineering Drilling Rig Portable Core Drilling Rig
